3HP 6 IMPELLER HIGH SPEED EFFICIENCY PADDLE WHEEL AERATOR

Product Parameters

Features

Technical Standard & Operational Environment

• The product is an improved paddle wheel aerator. Comparing the traditionone .it lowers reducer ratio, increases impeller rotation speed and improves the running stability of reducer.
• New impeller design with high quality engineering plastic ensure the mechanical strength of impeller when it is fast rotating. Strong capacity of water lifting and big water splash improve the dissolved oxygen in fish and shrimp pond.
• High speed impeller rotation produces a wide range of strong water flow over a long distance. It combines with high height water splash, improves dissolved oxygen, balances water temperature ad total oxygen content of the water and achieve the optimal water quality.
• High comprehensive performance. Compared with traditional paddle wheel aerator, this aerator is more energysaving in same condition.

Wenling Seafull Machinery Co., Ltd are leading 3HP 6 IMPELLER HIGH SPEED EFFICIENCY PADDLE WHEEL AERATOR suppliers in China, these products are widely used in industry, agriculture, fisheries and other fields. We also export wholesale 3HP 6 IMPELLER HIGH SPEED EFFICIENCY PADDLE WHEEL AERATOR which is CE certified. Welcome to visit our factory.

Parts

PARTS:

High Quality Efficiency Motor:

1. 1.Expertised design for Aquaculture Industry.
2. 2.The unique aerator motor made under "ISO9001"and "ISO14001" System.
3. 3.Top quality, Strict Q.C. to ensure best quality and performance.
4. CE certificate ,Cast iron body that could withstand high temperature and prolong the lifetime.
5. Adopt with Cold-rolled silicon steel, 100%pure copper wire.

Bevel Type Heavy-duty Reducer:

1. 1.Our Bevel type Gear made from T20 grade Cast Steel, this gear creat low sound and save Electricity.
2. 2.Low resistance bevel reducer ensure best quality and low power consumption.
3. 2.2 liters of #50 gear oil.

One-piece Blow Molded Impeller:

1. Replaceable paddle, lower maintenance cost.
2. Toughness against corrosion and sunburn resistance.
3. Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.
4. The "Support or Anchor Part" of the blade on the rim is more strengthened and unique designed.

HDPE Motor Cover:

One-piece blow molded virgin HDPE motor cover for water protection.

Allow better heat dissipation of motor and easy for delivery.

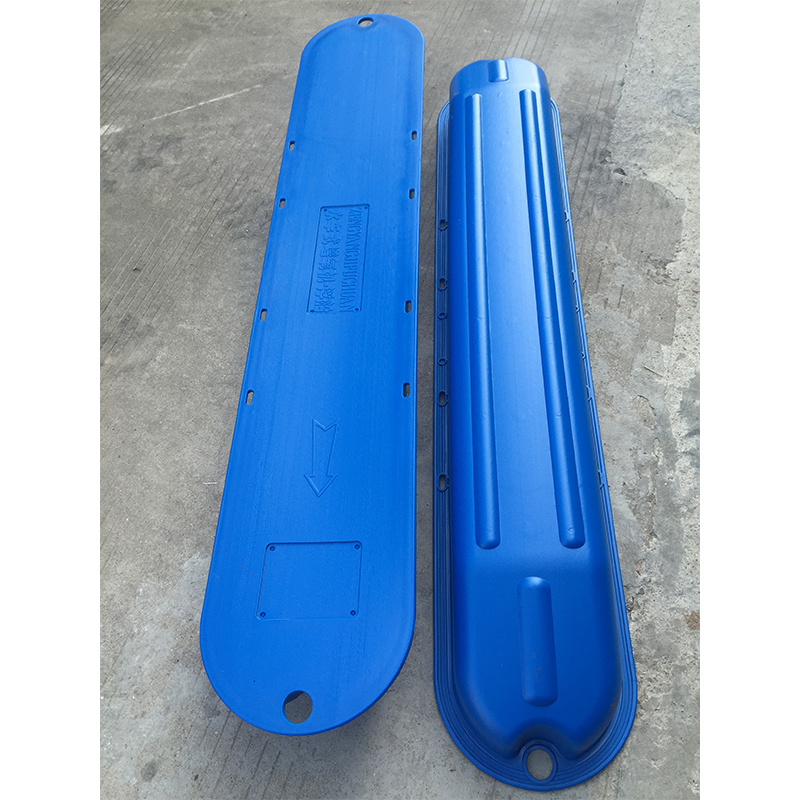

HDPE Float:

1. One-piece blow molded of reinforced HDPE float that could resist against acid-alkalinity and sun exposure,crack-free and no water seeping problem.
2. Made of 100% new HDPE material to optimize full ductility.
3. Easy for delivery and installation.
4. It never break even if throwing it down to the ground from the 3th floor.

Drive Shaft

1. Made of # 304 stainless steel material.
2. Durable and Never Rust.

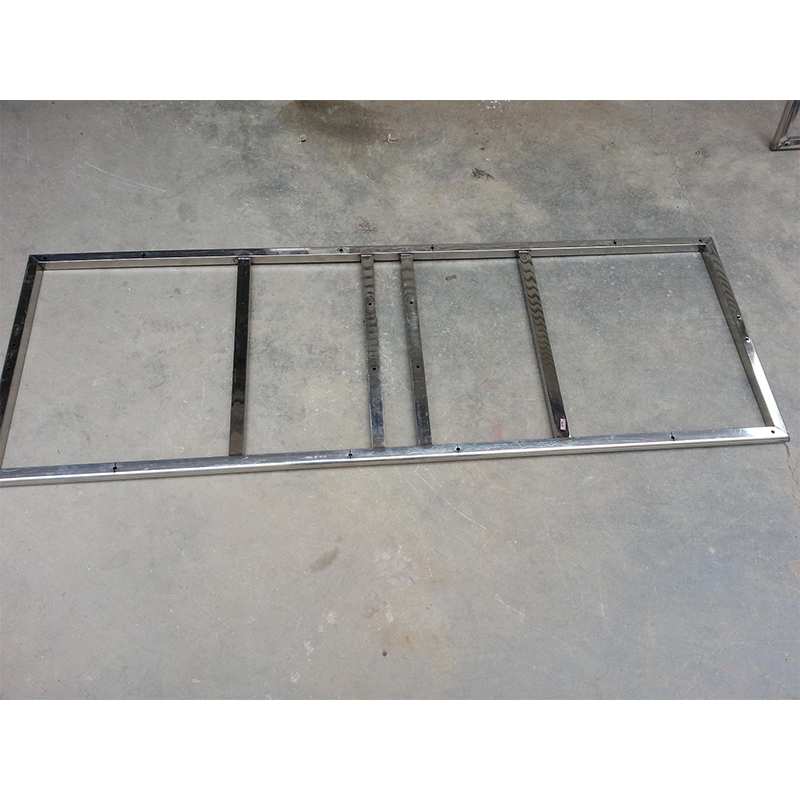

#304 Stainless Steel Frames

      1.Made of # 304 stainless steel material.
      2.Sturdy and without deformation.
      3.High durability.

Movable Joint

Made of 304# stainless steel or Cast Iron and Rubber

Block-bearing Tripod

1. Special synthetic rubber bush of block-bearing could withstand higher temperature and resistance against continuous friction.
2. Made of PE or Nylon
